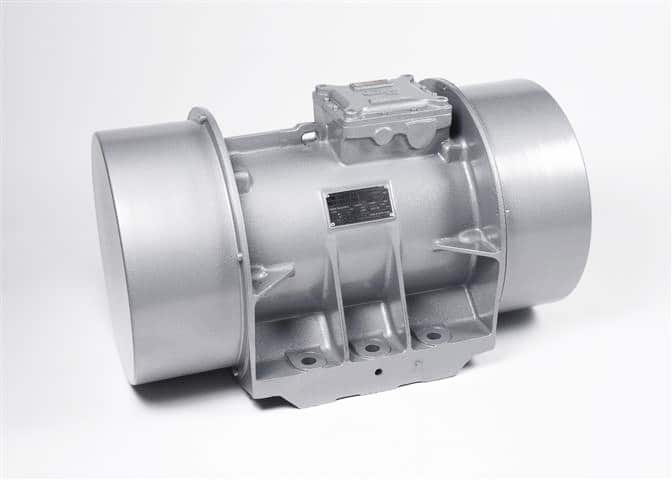

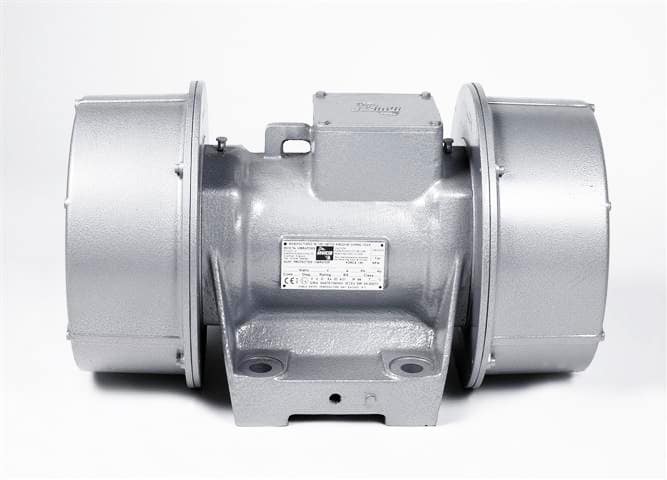

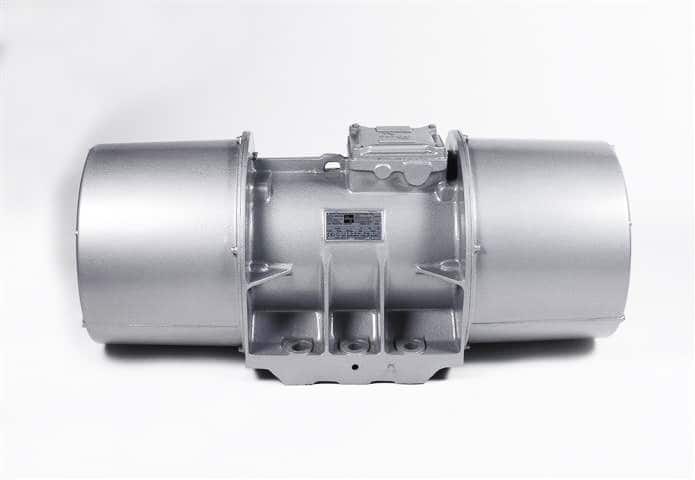

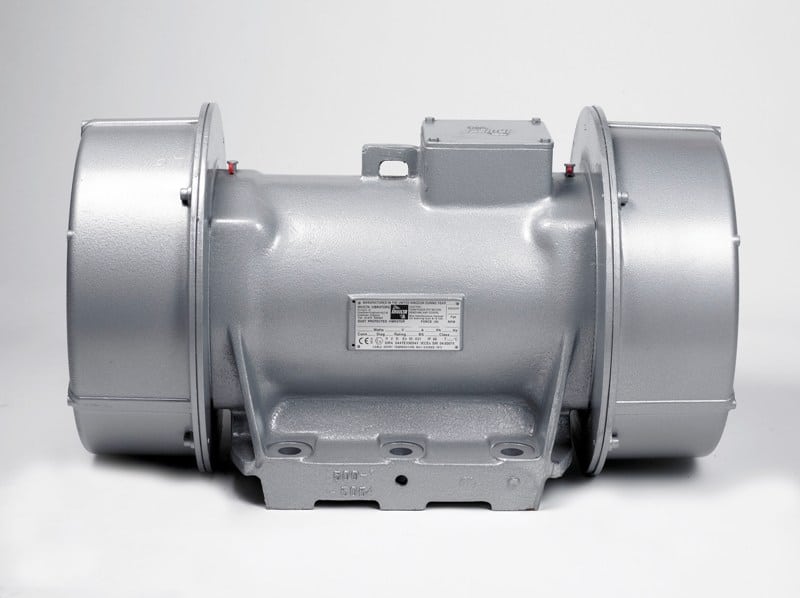

Vibračný motor BM 520-15

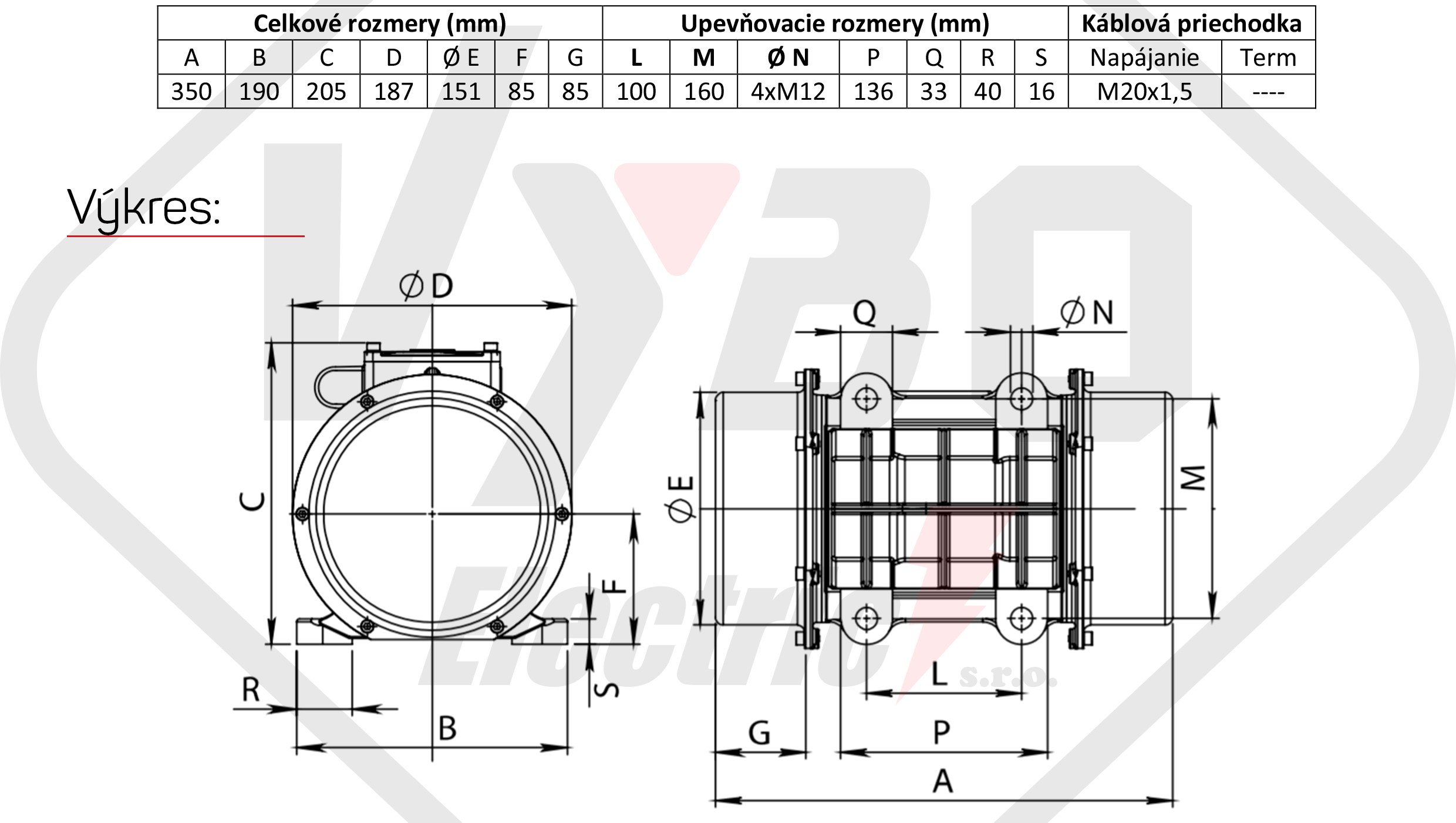

Rozmerový výkres – Vibračný motor BM 520-15
Statický moment pri 50Hz (kgmm)
199
Statický moment pri 60Hz (kgmm)
160,6
Odstredivá sila pri 1500rpm a 50Hz (kg)
500
Odstredivá sila pri 1800rpm a 60Hz (kg)
582
Odstredivá sila pri 1500rpm a 50Hz (kN)
4,91
Odstredivá sila pri 1800rpm a 60Hz (kN)
5,71
Váha pri 50Hz(kg)
25,9
Váha pri 60Hz(kg)
24,6
Vstupný výkon pri 50Hz (W)
340
Vstupný výkon pri 60Hz (W)
400
Menovitý prúd pri 400V a 50Hz (A)
0,71
Menovitý prúd pri 460V a 60Hz (A)
0,71
Is/In pomer pri 50Hz
3,05
Is/In pomer pri 60Hz
3,3
Napájanie
M20x1,5
Term
—-
Štandardné napätie 230/400V/50Hz
BM 60/3
BM65/3
BM95/3
BM130/3
BM200/3
BM300/3
BM450/3
BM650/3
BM650/3-V
BM850/3
BM1100/3
BM1400/3
BM1400/3-U
BM1600/3
BM2000/3
BM2500/3
BM3300/3
BM5200/3
BM6500/3
BM9000/3
2POLE
66
66
93
125
187
310
465
668
668
859
1050
1305
1305
1610
2002
2500
3300
5100
6300
8974
BM25/15
BM30/15
BM60/15
BM90/15
BM200/15
BM250/15
BM400/15
BM400/15-V
BM520/15
BM520/15-V
BM750/15
BM1100/15
BM1500/15
BM2000/15
BM2700/15
BM3800/15
BM5000/15
BM7000/15
BM7900/15
BM8000/15
BM9500/15
BM11500/15
4POLE
24
31
55
78
207
250
404
404
500
500
709
1099
1451
2076
2721
3825
4988
6620
8180
8180
9012
11425
