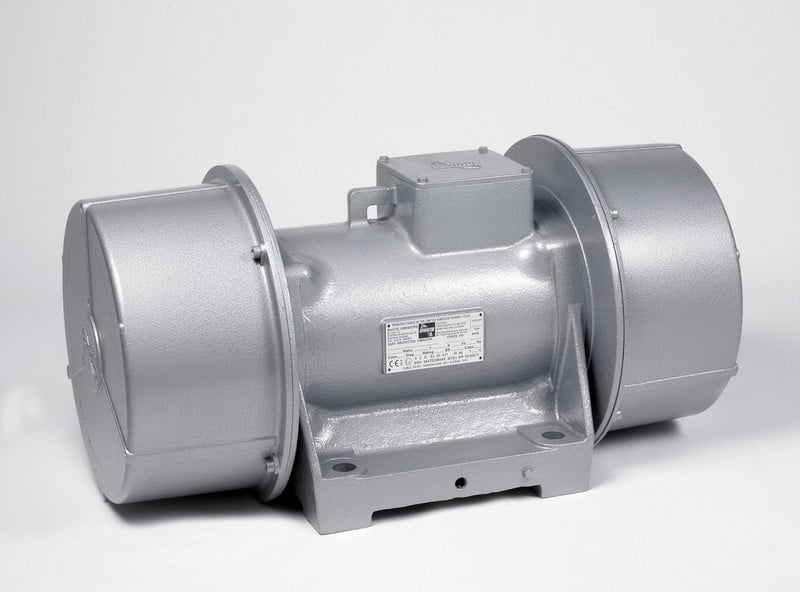

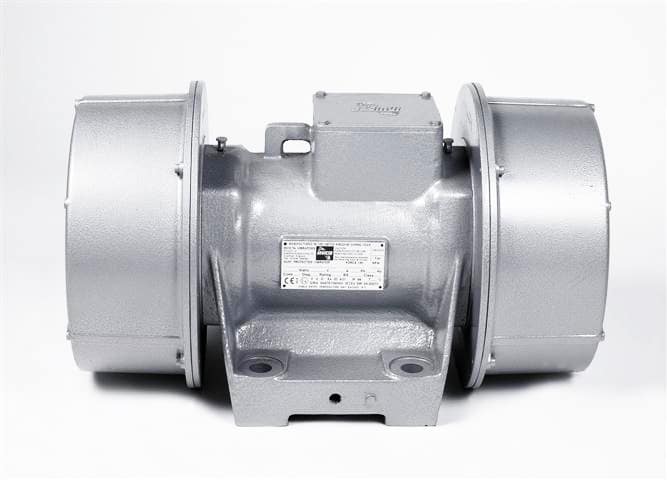

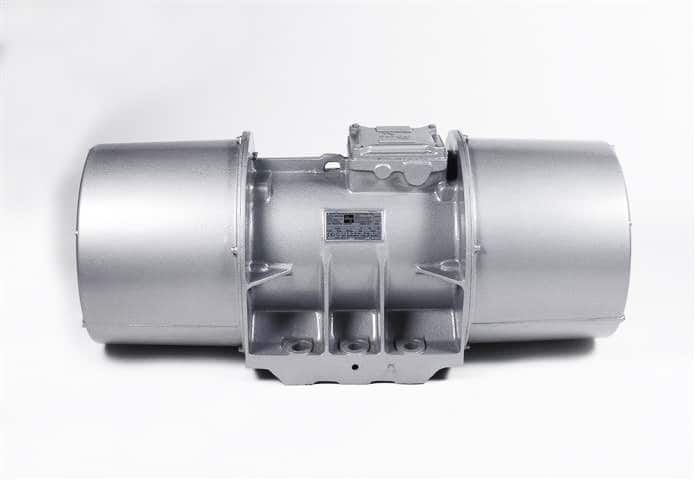

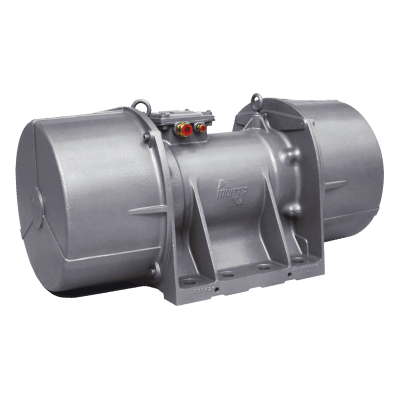

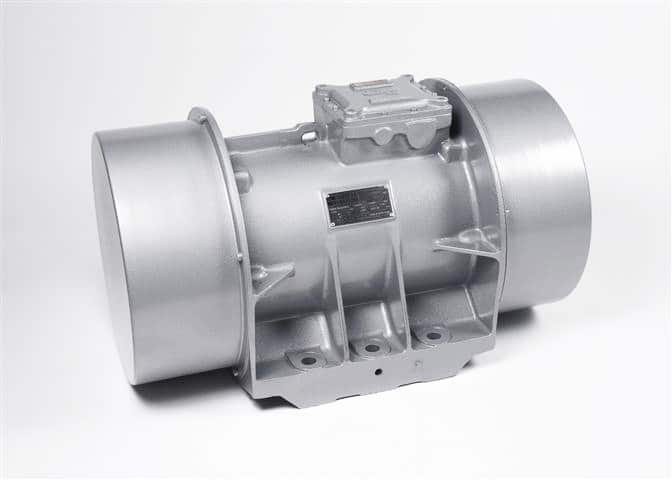

Vibračný motor BM 650-3-V

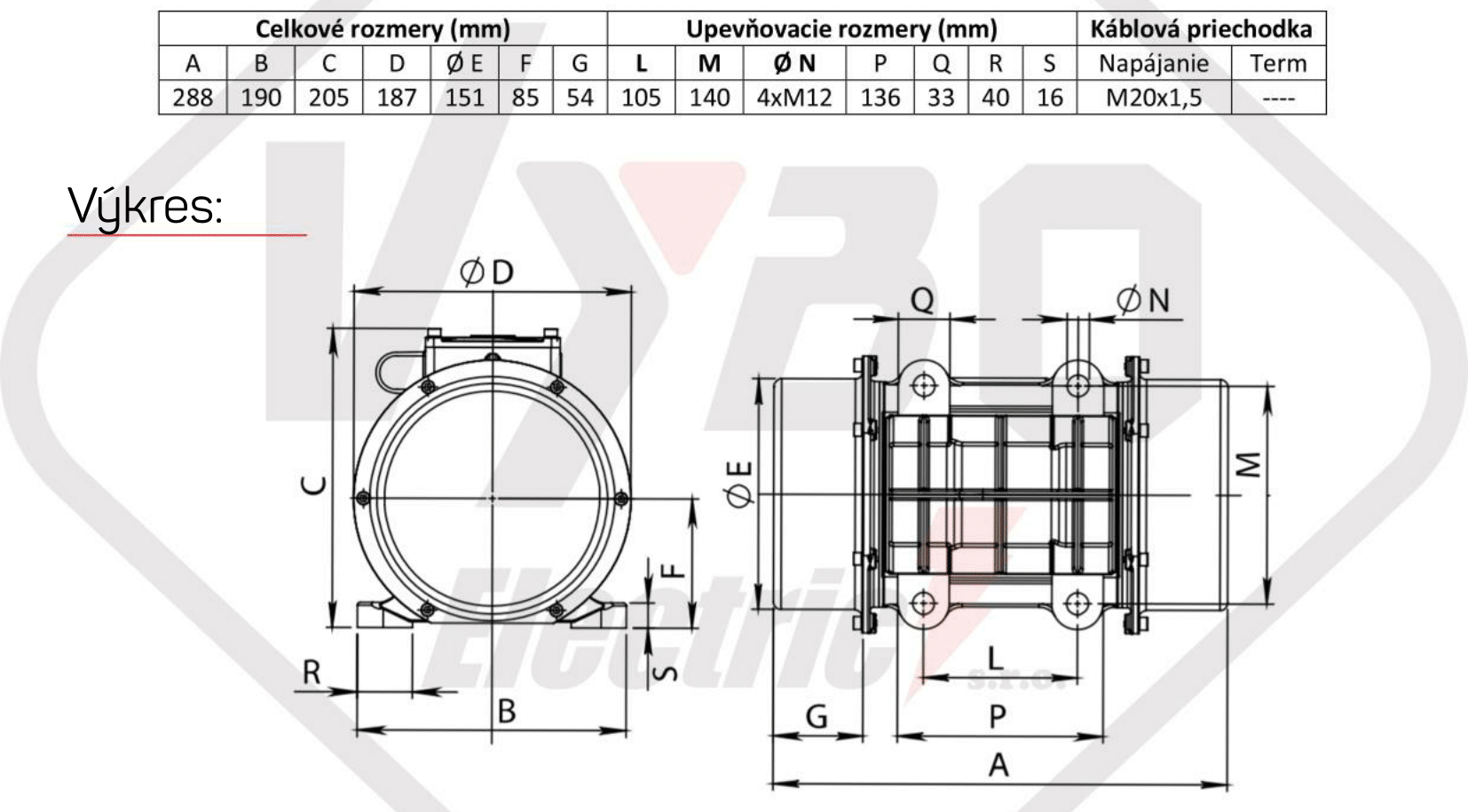

Rozmerový výkres – Vibračný motor BM 650-3-V
Statický moment pri 50Hz (kgmm)
66,4
Statický moment pri 60Hz (kgmm)
47,4
Odstredivá sila pri 3000rpm a 50Hz (kg)
668
Odstredivá sila pri 3600rpm a 60Hz (kg)
687
Odstredivá sila pri 3000rpm a 50Hz (kN)
6,55
Odstredivá sila pri 3600rpm a 60Hz (kN)
6,74
Váha pri 50Hz(kg)
21
Váha pri 60Hz(kg)
20,4
Vstupný výkon pri 50Hz (W)
500
Vstupný výkon pri 60Hz (W)
600
Menovitý prúd pri 400V a 50Hz (A)
0,98
Menovitý prúd pri 460V a 60Hz (A)
0,85
Is/In pomer pri 50Hz
4,45
Is/In pomer pri 60Hz
4,6
Napájanie
M20x1,5
Term
—-
Štandardné napätie 230/400V/50Hz
BM 60/3
BM65/3
BM95/3
BM130/3
BM200/3
BM300/3
BM450/3
BM650/3
BM650/3-V
BM850/3
BM1100/3
BM1400/3
BM1400/3-U
BM1600/3
BM2000/3
BM2500/3
BM3300/3
BM5200/3
BM6500/3
BM9000/3
2POLE
66
66
93
125
187
310
465
668
668
859
1050
1305
1305
1610
2002
2500
3300
5100
6300
8974
BM25/15
BM30/15
BM60/15
BM90/15
BM200/15
BM250/15
BM400/15
BM400/15-V
BM520/15
BM520/15-V
BM750/15
BM1100/15
BM1500/15
BM2000/15
BM2700/15
BM3800/15
BM5000/15
BM7000/15
BM7900/15
BM8000/15
BM9500/15
BM11500/15
4POLE
24
31
55
78
207
250
404
404
500
500
709
1099
1451
2076
2721
3825
4988
6620
8180
8180
9012
11425
